LED Video Wall Pixel Pitch Guide 2026: P1.5 vs P2 vs P3 vs P6 Decoded for Bangalore Buyers

Walk into any LED video wall vendor meeting and within 5 minutes you will hear acronyms thrown around — P1.5, P2.5, P3, P6, fine-pitch, COB, GOB, SMD. Most Indian buyers nod through this and end up either over-buying (paying ₹15 lakh extra for P1.5 when P2.5 would have done) or under-buying (P6 wall in a lobby where viewers walk within 2 metres and see individual pixels).

LED video wall pixel pitch is genuinely the single most important specification choice you make. Get it right and the wall looks seamless from every viewing distance. Get it wrong and the visual experience falls apart for years. This guide decodes pixel pitch in plain English — what it is, the simple rule for picking the right pitch, real Bangalore room-by-room examples, 2026 pricing across pitches, and the five common mistakes that lead to over- or under-spec’d walls. For the full LED video wall buying guide, read our hub: LED video wall in Bangalore.

What Pixel Pitch Actually Means — In Plain English

Pixel pitch is the distance in millimetres between the centre of two adjacent LEDs on the panel. P1.5 means the LEDs are 1.5 mm apart. P3 means they are 3 mm apart. P10 means 10 mm apart. Lower pitch = LEDs packed more densely = sharper image at close viewing distance.

Pixel pitch directly determines two things: (1) the resolution per square metre — a P1.5 wall has roughly 16× more pixels per sq.m than a P6 wall, and (2) the minimum viewing distance — closer than the minimum, you start seeing individual pixels rather than a continuous image.

The Simple Rule — Optimal Viewing Distance Roughly Equals Pixel Pitch in Metres

Industry rule of thumb: optimal viewing distance (in metres) ≈ pixel pitch (in millimetres).

P1.5 → sharp from ~1.5 metres
P2 → sharp from ~2 metres
P3 → sharp from ~3 metres
P6 → sharp from ~6 metres
P10 → sharp from ~10 metres

Measure your closest expected viewing distance, then pick the pitch where the LEDs disappear into a seamless image at that distance. Closer-than-optimal does not break the wall — but viewers will see individual pixels if they walk right up to it. Farther-than-optimal works fine — you just over-spent on resolution that no one can see.

Fine-Pitch LED (P0.9 to P1.5) — Boardroom, Broadcast, Control Room

Fine-pitch LED walls are the premium category. P1.5 and below are used where viewers sit 1-2 metres away from the wall and the wall replaces a traditional projector + screen + display setup. The image is genuinely indistinguishable from a high-end monitor at normal viewing distance.

Best use cases for fine-pitch LED in Bangalore:

Executive boardrooms (15-25 seater) replacing dual-projector setups
Broadcast and production studios — used as virtual production backdrops, XR sets
Control rooms and NOCs with 24×7 close-distance monitoring of dashboards
Surgical operating room observation theatres in premium hospitals
Trading floors and BFSI war rooms with real-time financial dashboards

2026 Bangalore pricing for fine-pitch (P0.9 to P1.5): ₹40,000 to ₹70,000 per sq.ft installed. A typical 21 sq.ft boardroom wall runs ₹12-18 lakh.

Mid-Pitch LED (P1.8 to P2.5) — Lobbies, Retail, Conference Halls

Mid-pitch is the sweet spot for the majority of premium Bangalore corporate lobbies, retail flagships, conference halls, and event spaces. P1.8 to P2.5 looks sharp from 2-3 metres away — the typical distance at which visitors approach a lobby wall or where conference attendees sit relative to a stage backdrop.

Best use cases for mid-pitch LED in Bangalore:

Corporate lobby walls — visitors approach within 2-3 metres
Premium retail flagship stores — customers walk within 2 metres of the wall
Conference hall stage backdrops for 80-150 capacity
Mid-size auditoriums for 100-200 capacity
Wedding and event venues in premium banquet halls
Premium digital signage in malls and mixed-use developments

2026 Bangalore pricing for mid-pitch (P1.8 to P2.5): ₹25,000 to ₹40,000 per sq.ft installed. A typical 55 sq.ft corporate lobby wall runs ₹16-28 lakh.

Standard-Pitch LED (P3 to P4) — Auditoriums, Large Halls, Indoor Sports

Standard-pitch LED (P3 to P4) is the value-engineering choice for large indoor venues where viewers sit 3-6 metres back. Auditoriums, college lecture halls, religious assembly halls, indoor sports facilities, large convention spaces — these all use P3 or P4 in Bangalore deployments in 2026.

Best use cases for standard-pitch LED in Bangalore:

College auditoriums (200-500 capacity)
Large lecture halls in engineering colleges and medical institutes
Religious assembly halls (gurudwaras, temples, churches with 300+ capacity)
Indoor sports halls showing scoreboards and replays
Convention centres and exhibition halls
Large multi-purpose halls in hotels

2026 Bangalore pricing for standard-pitch (P3 to P4): ₹14,000 to ₹26,000 per sq.ft installed. A typical 220 sq.ft auditorium stage backdrop runs ₹40-65 lakh.

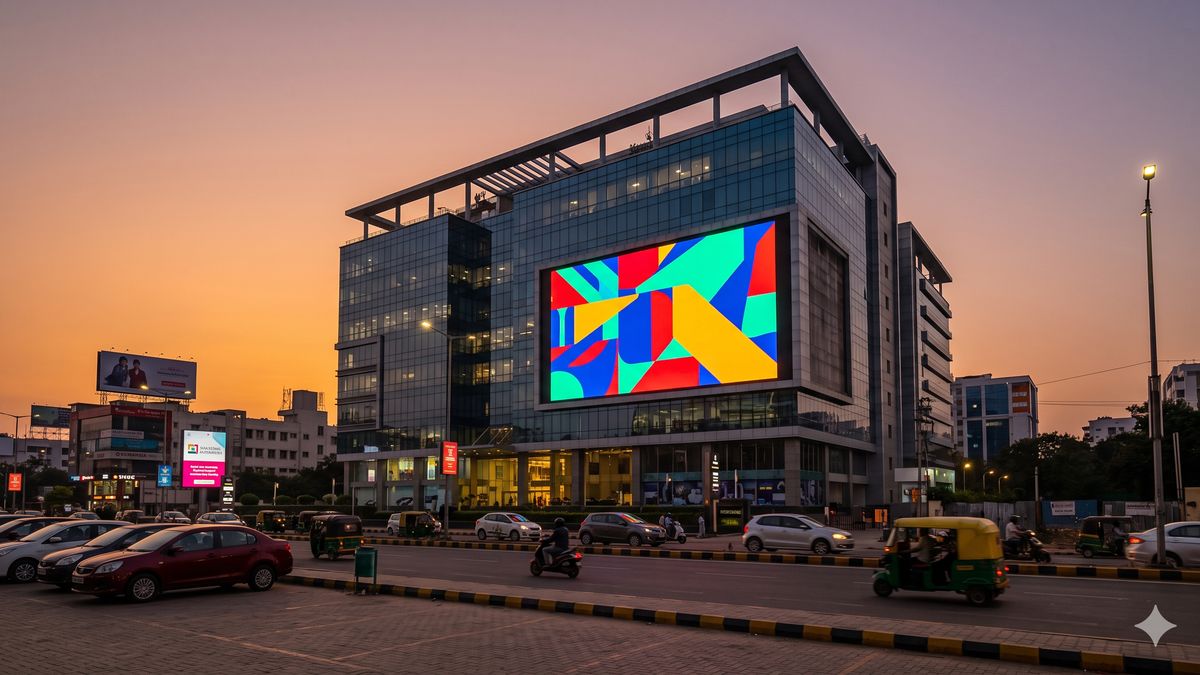

Outdoor large-pitch LED video wall — P10 on a Bangalore building façade, optimised for viewers 15-25 metres away across the road.

Large-Pitch LED (P6 to P10) — Outdoor Façades and Large Stadiums

Large-pitch LED (P6 and above) is used where viewers are 6 metres or further from the wall — outdoor building façades, stadium scoreboards, very large indoor sports venues, and digital out-of-home (DOOH) advertising in transit hubs and large public spaces.

Best use cases for large-pitch LED in Bangalore:

Outdoor building façades (commercial and corporate)
Stadium scoreboards and large outdoor scoreboards
DOOH (digital out-of-home) advertising in malls, mall atriums, transit hubs
Very large indoor sports halls where viewers sit 10+ metres away
Building entrance gates and major signage

2026 Bangalore pricing for large-pitch (P6 to P10, outdoor weather-rated): ₹14,000 to ₹22,000 per sq.ft installed. A typical 480 sq.ft outdoor façade runs ₹70 lakh to ₹1.4 crore.

Complete LED Video Wall Pixel Pitch Reference for 2026

Pitch	Optimal viewing distance	Best use cases	Indicative ₹/sq.ft (Bangalore 2026)
P0.9	Less than 1 m	Fine-pitch boardrooms, broadcast studios, dental imaging review rooms	₹55,000 – ₹85,000
P1.2 – P1.5	1 – 1.5 m	Premium boardrooms, control rooms, broadcast studios, trading floors	₹40,000 – ₹70,000
P1.8 – P2.0	1.8 – 2 m	Corporate lobbies, premium retail, hotel lobbies	₹28,000 – ₹45,000
P2.5	~2.5 m	Standard corporate lobbies, retail, conference halls	₹22,000 – ₹35,000
P3	~3 m	Auditoriums, large meeting halls, religious assembly	₹18,000 – ₹26,000
P4	~4 m	Large auditoriums, college lecture halls, indoor sports	₹14,000 – ₹20,000
P6	~6 m	Indoor stadium, large halls, semi-outdoor signage	₹10,000 – ₹15,000 (indoor)
P8 – P10 (outdoor)	8 – 15 m	Outdoor building façade, DOOH, stadium scoreboards	₹14,000 – ₹22,000 (outdoor-rated)
P16+ (outdoor)	More than 15 m	Highway signage, very large public-space DOOH	₹12,000 – ₹18,000 (outdoor-rated)

Real Bangalore LED Video Wall Projects — 3 Pitches, 3 Lessons

Project A — P1.5 fine-pitch boardroom in Embassy GolfLinks IT campus

Wall: P1.5 fine-pitch LED, 9 ft × 5 ft (45 sq.ft)
Why P1.5: Boardroom viewers sit 1.5-2 metres from the wall — P2 would have been borderline acceptable, P1.5 is comfortable
Brand: Samsung IER
Total cost: ₹19 lakh including processor + acoustic treatment + ceiling speakers
Result: Replaced a dual-projector setup. Image quality at viewing distance is indistinguishable from a high-end monitor.

Project B — P2 mid-pitch lobby wall in a Manyata Tech Park IT company

Wall: P2 LED, 12 ft × 5 ft (60 sq.ft)
Why P2: Visitors approach within 1.5-3 metres — P2 is sharp at that range, P3 would have shown LEDs to closest viewers
Brand: Absen N2 Plus
Total cost: ₹22 lakh
Result: Hosts dynamic brand storytelling content + live employee recognition feeds during work hours.

Project C — P3 auditorium backdrop in an engineering college (Sarjapur)

Wall: P3 LED, 20 ft × 11 ft (220 sq.ft)
Why P3: Auditorium back row sits 12-15 metres from the stage — P3 looks sharp from 3 metres and continues looking great at 15 metres. P2 here would have been wasteful overspend; P6 would have looked grainy to front-row faculty
Brand: Absen Acclaim
Total cost: ₹52 lakh
Result: Used 3-4 days a week for guest lectures, convocations, technical fests, and student film screenings.

5 Common Pixel Pitch Selection Mistakes

Over-buying fine-pitch for an auditorium. Putting P1.5 in a 200-seater hall is a waste of ₹20-30 lakh. Audience members sitting 5-10 metres back cannot see the additional resolution. Use P3 or P4 — saves 50-60% on cost with no visible quality difference.
Under-buying coarse-pitch for a lobby. Putting P6 in a corporate lobby where visitors approach within 2 metres makes them see individual pixels. The wall looks grainy and unprofessional from close range. Use P2 or P2.5 for lobbies.
Ignoring the closest expected viewer. A wall serving an auditorium with 80% of seats 8+ metres back is tempting to spec at P6. But if the front row sits 2 metres from the stage, those viewers will see pixelation. Always spec to the closest viewer, not the average.
Not accounting for content type. Walls displaying full-screen video tolerate higher pitch than walls displaying detailed graphics, text, or financial dashboards. A trading floor showing real-time price tickers needs much finer pitch than the same wall showing branded video content.
Treating outdoor and indoor pitches as interchangeable. Outdoor walls need IP65/IP66 weather sealing, 5,000-10,000 nits brightness, and pitches optimised for long viewing distances. An indoor P3 wall installed outdoors will fail within months from water ingress, ambient brightness wash-out, and UV damage.

LED Video Wall Pixel Pitch — Frequently Asked Questions

What does pixel pitch mean for an LED video wall?

Pixel pitch is the distance in millimetres between the centre of two adjacent LEDs on the panel. P1.5 means LEDs are 1.5 mm apart; P3 means 3 mm apart; P10 means 10 mm apart. Lower pitch = denser LEDs = sharper image at close range. Pixel pitch directly determines two things: the resolution per square metre, and the minimum viewing distance below which viewers start seeing individual pixels.

What is the rule for choosing the right pixel pitch for an LED video wall?

The simple industry rule: optimal viewing distance (in metres) approximately equals the pixel pitch (in millimetres). So P2 looks sharp from 2 metres, P3 looks sharp from 3 metres, P6 from 6 metres, P10 from 10 metres. Measure your closest expected viewing distance and pick the pitch where individual LEDs disappear into a seamless image at that distance.

How much does a P1.5 fine-pitch LED video wall cost in Bangalore in 2026?

A P1.5 fine-pitch LED video wall in Bangalore in 2026 costs ₹40,000 to ₹70,000 per square foot installed, including the video processor, sending and receiving cards, mounting frame, and basic installation. A typical 21 sq.ft boardroom wall runs ₹12-18 lakh. Premium broadcast-grade brands like Samsung IER and Absen are on the higher end of the range.

What pixel pitch should I choose for a corporate lobby in Bangalore?

For a corporate lobby in Bangalore where visitors walk within 1.5-3 metres of the wall, P1.8 to P2.5 is the right pitch. P1.8 to P2.0 for lobbies where visitors approach within 1.5-2 metres (sharper, premium feel); P2.5 for lobbies where the closest viewer stays 2.5-3 metres back. P3 starts showing visible LEDs to viewers closer than 3 metres, which looks unprofessional in a premium corporate setting.

Is a P6 LED video wall good enough for an auditorium?

For most auditoriums where the front row sits 4-6 metres from the stage, P6 is borderline acceptable but P3 or P4 is much better. Use P3 if your front-row viewers are 3+ metres back. Use P6 only if you can guarantee no viewer will be closer than 6 metres — which is rare in modern auditorium designs.

What is the difference between indoor and outdoor LED video wall pixel pitch?

Outdoor LED video walls use larger pitches (P6 to P20) optimised for long viewing distances (8-30+ metres), higher brightness (5,000-10,000 nits to remain visible in direct sunlight), and weatherproof IP65/IP66 sealing. Indoor LED video walls use smaller pitches (P0.9 to P3.0), lower brightness (800-1,500 nits), and are not weather-sealed. The two are not interchangeable — installing an indoor P3 outdoors will fail within months.

Do all LED video wall brands offer the same pixel pitch options?

No. Premium brands like Samsung, LG, Absen, Unilumin, and Leyard each have their own product lines with different pitch availability. Samsung IF and Absen Acclaim series cover the full P0.9 to P10 range. LG Direct View LED covers similar range. Specialised brands focus on particular pitches — for example, some Indian OEMs focus on outdoor P6-P10 walls for cost-optimised DOOH applications.

Can I mix different pixel pitches in the same building?

Yes, and many premium Bangalore deployments do exactly this. Fine-pitch P1.5 in the boardroom (viewers 1-2 m away), mid-pitch P2 in the lobby (viewers 2-3 m away), standard-pitch P3 in the auditorium (viewers 4-10 m away). Vantage Systems regularly delivers mixed-pitch deployments across IT campuses, university campuses, and corporate headquarters in Bangalore.
