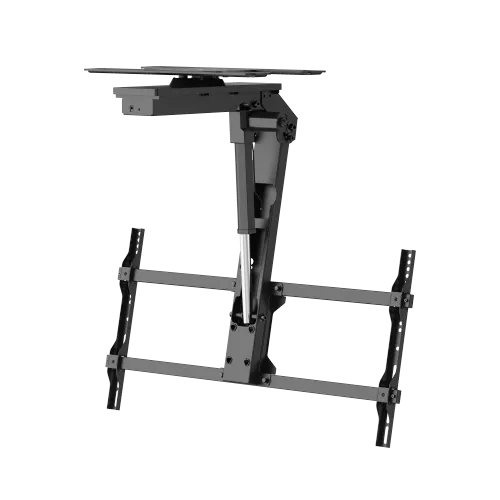

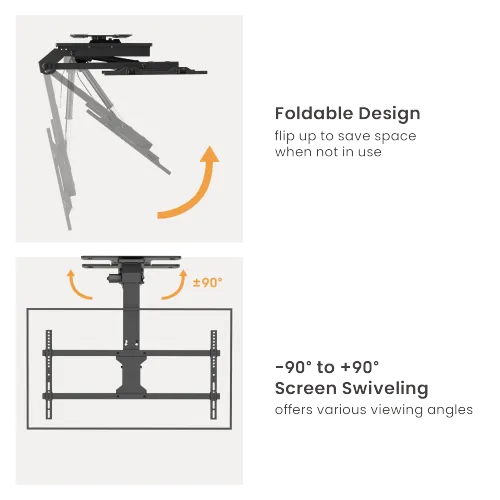

Unrestricted to spaces, PLB-M0748DS Large Smart Electric TV Ceiling Mount with Swivel Design & Double Stud Installation Option aims to provide premium coziness for both indoor and outdoor viewing experiences. It fits TV sizes up to 86″. Via Voice/Tuya App/Remote Control, the TV positions are effortlessly adjusted. Moreover, the mounts can move quietly at a quicker speed with the superior motor and electric push rod. Tilting and swiveling design maximize viewing flexibility. As for the protective functionality, the collision avoidance system can halt TV swivel upon encountering obstacles. The foldable design allows the mounts to flip up when not in use. Beside the conventional installation option on solid walls, PLB-M0748DS offers the option to be installed on double studs. With leveling adjustments, TVs are ensured to be perfectly positioned after hanging.
| Product Category: |
Motorized TV Ceiling Mount |
| Rank: |
Premium |
| Material: |
Steel,Plastic,Aluminum |
| Metal Sheet Thickness: |
Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet (Bracket Arm THK=0.059″ cold-rolled sheet,VESA Panel THK=0.059″ cold-rolled sheet) |
| Surface Finish: |
Powder Coating |
| Color: |
Matte Black |
| Dimensions: |
872x864x503mm (34.3″x34″x19.8″) |
| Fit Screen Size: |
43″-86″ |
| Fit Curved TV: |
Yes |
| Mounting Hole Pattern: |
VESA & Universal |
| VESA Compatible: |
200×100,200×200,300×200,400×200,300×300,400×300,600×200,400×400,600×300,600×400,800×400 |
| Max. Mounting Hole: |
800×400 |
| Weight Capacity: |
45kg (99lbs) |
| Strength Tested: |
4 Times Approved |
| Profile: |
177mm (7″) |
| Tilt Range: |
0~-75° |
| Swivel Range: |
+90°~-90° |
| Screen Level: |
+2°~-2° |
| Installation: |
Double Stud(406mm),Ceiling Mounted |
| Panel Type: |
Detachable Panel |
| Wall Plate Type: |
Fixed Wall Plate |
| AV Component Shelf: |
No |
| Cable Management: |
Yes |
| Anti-theft: |
No |
| Power Supply: |
Input:AC 100~240V,50/60Hz;Output:DC 29V, 1A |
| Power Cord Length: |
3m (9.8ft) |
| Controller Type: |
Application Control,Radio Frequency(RF) Remote |
| Bubble Level: |
No |
| Accessory Kit Package: |
Normal/Ziplock Polybag,Compartment Polybag |
| Certification: |
CE,ErP,FCC,RoHS |
| Silk Screen: |
Can be silkscreen printed |
