PLB-M06 Motorized Swing TV Mount

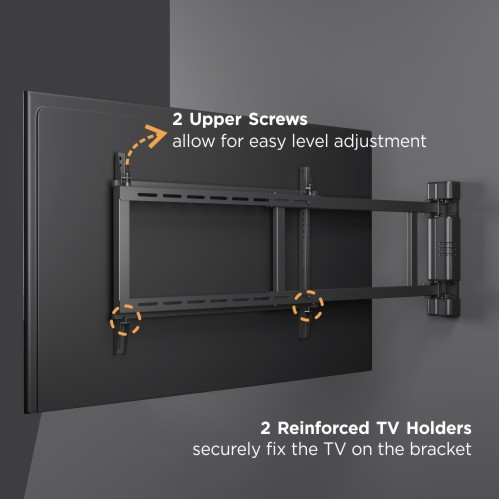

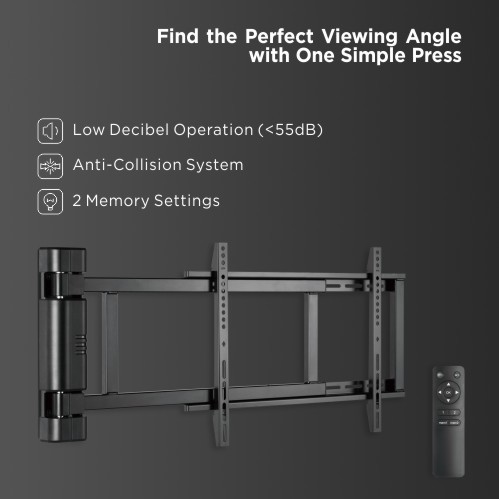

Find the perfect viewing angle with one simple press. LUMI’s PLB-M06 Motorized Swing TV Mount is designed for most 32” -75” TVs up to 50kg/110lbs. This mount can move your TV up to 170 degrees, you can choose your favorite positions without leaving your seat, finding the perfect viewing angle. A quiet motorized mechanism provides smooth positioning and motion. Collision avoidance system safeguards against accidents and injuries. Slim design sits just 56mm from wall. Cable management keeps everything organized.

Product Category:	Motorized TV Wall Mount
Rank:	Standard
Material:	Steel,Aluminum,Plastic
Metal Sheet Thickness:	Bracket Arm THK=1.5mm cold-rolled sheet,Wall Plate THK=4.0mm pickling sheet (Bracket Arm THK=0.059″ cold-rolled sheet,Wall Plate THK=0.16″ pickling sheet)
Pipe Size:	30x15x1.5mm Square Steel Tube,30x20x1.5mm Square Steel Tube (1.2″x0.59″x0.059″ Square Steel Tube,1.2″x0.79″x0.059″ Square Steel Tube)
Surface Finish:	Powder Coating
Color:	Matte Black,Matte White
Color(accessory):	Matte Black,Matte White

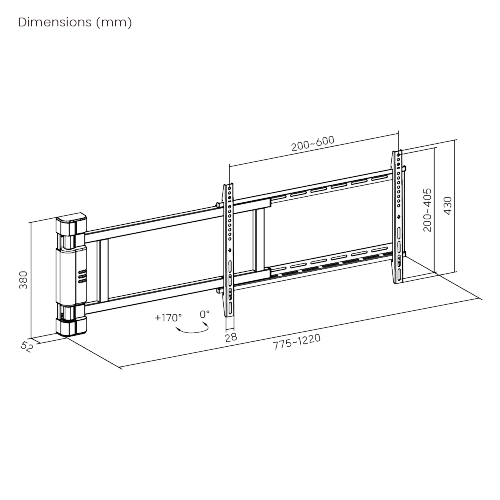

Dimensions:	56x1220x430mm (2.2″x48″x16.9″)
Fit Screen Size:	32″-75″
Fit Curved TV:	Yes
Mounting Hole Pattern:	VESA & Universal
VESA Compatible:	200×200,200×300,300×200,200×400,400×200,300×300,300×400,400×300,600×200,400×400,600×300,600×400
Max. Mounting Hole:	600×400
Weight Capacity:	50kg (110lbs)

Strength Tested:	3 Times Approved

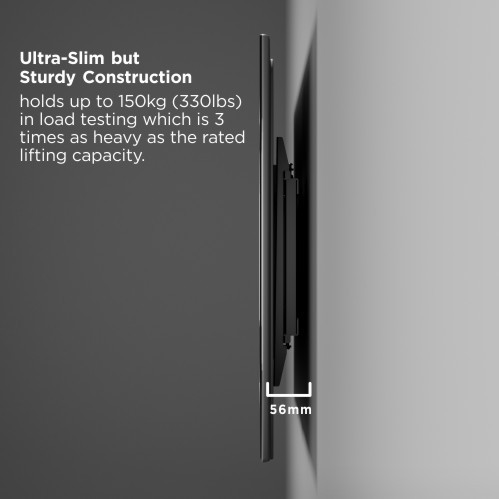

Profile:	Min.56mm (Min.2.2″)
Swivel Range:	0°~+170°
Installation:	Solid Wall,Single Stud
Panel Type:	Detachable Panel
Wall Plate Type:	Fixed Wall Plate
Direction Indicator:	Yes

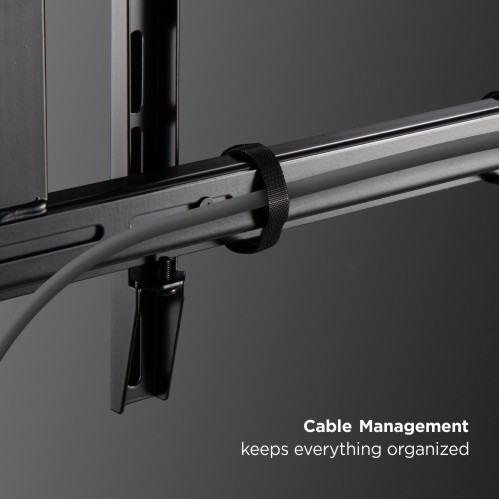

Cable Management:	Yes
Power Supply:	Input:AC 100~240V,50/60Hz;Output:DC 12V, 1A
Power Cord Length:	1.5m (4.9ft)
Controller Type:	Radio Frequency(RF) Remote
Bubble Level:	Hook-on Bubble Level(Included in Components Package)
Accessory Kit Package:	Normal/Ziplock Polybag,Compartment Polybag
Certification:	AS/NZS Report for National Differences,CE,ErP,FCC,RoHS
