LPA86-696A Cost-Effective Heavy-Duty Full-Motion TV Wall Mount

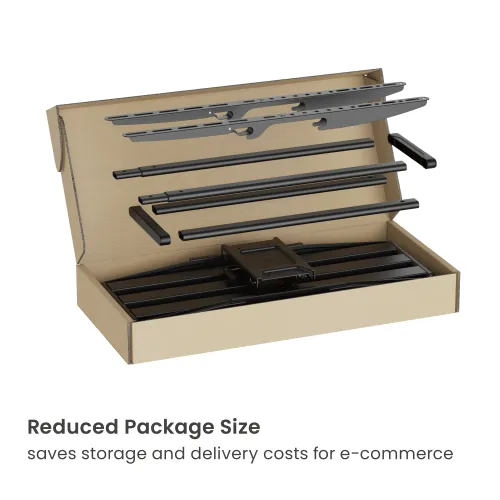

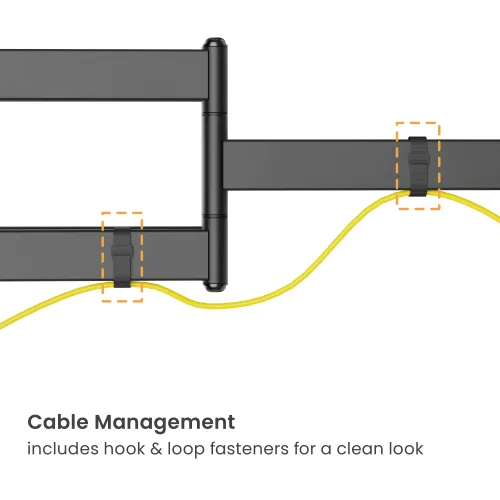

Available in different scenarios, the LPA86-696A Cost-Effective Heavy-Duty Full-Motion TV Wall Mount contributes to elevated entertainment. With a robust design, the mount holds TVs up to 75kg. Significant viewing flexibility is maximized by the full-motion characteristic, allowing extensive angle adjustments according to needs and preferences. To further optimize TV positioning, the mount offers large extension with smooth movement. With compact package size, storage and delivery costs are effectively saved for e-commerce sellers. The hook and loop fasteners are included for easy cable management to keep your space clean and organized.
| Product Category: | Full-Motion TV Wall Mount |
| Rank: | Standard |
| Material: | Steel,Plastic |
| Metal Sheet Thickness: | Bracket Arm THK=1.5mm cold-rolled sheet,VESA Panel THK=1.8mm cold-rolled sheet,Wall Plate THK=2.5mm pickling sheet (Bracket Arm THK=0.059″ cold-rolled sheet,VESA Panel THK=0.071″ cold-rolled sheet,Wall Plate THK=0.098″ pickling sheet) |
| Pipe Size: | 40x20x1.2mm Square Steel Tube (1.6″x0.79″x0.047″ Square Steel Tube) |
| Surface Finish: | Powder Coating |
| Color: | Fine Texture Black |
| Dimensions: | 638x976x623mm (25.1″x38.4″x24.5″) |
| Fit Screen Size: | 50″-105″ |
| Fit Curved TV: | Yes |
| Mounting Hole Pattern: | VESA & Universal |
| VESA Compatible: | 200×100,200×200,200×300,300×200,200×400,400×200,300×300,300×400,400×300,600×200,500×300,400×400,600×300,500×400,400×600,600×400,700×400,800×400,600×600,800×500,800×600,900×600 |
| Max. Mounting Hole: | 909×602 |
| Weight Capacity: | 75kg (165lbs) |
| Strength Tested: | 3 Times Approved |

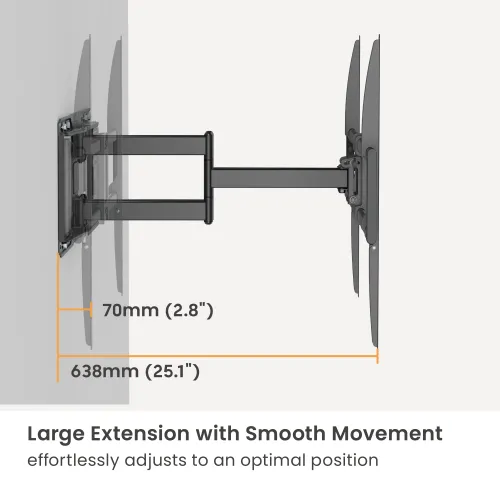

| Profile: | 70~638mm (2.8″~25.1″) |

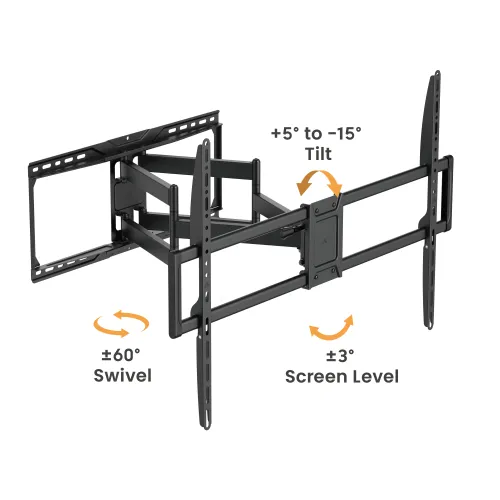

| Tilt Range: | +5°~-15° |
| Swivel Range: | +60°~-60° |
| Screen Level: | +3°~-3° |
| Screen Freely Tilting: | No |
| Installation: | Solid Wall,Double Stud(406mm/450mm/600mm) |
| Panel Type: | Detachable Panel |
| Wall Plate Type: | Fixed Wall Plate |
| AV Component Shelf: | No |
| Direction Indicator: | Yes |
| Cable Management: | Yes |
| Anti-theft: | No |
| Bubble Level: | Hook-on Bubble Level(Included in Components Package) |
| Accessory Kit Package: | Normal/Ziplock Polybag,Compartment Polybag |
| Silk Screen: | Can be silkscreen printed |
