Aluminum TV Cart with Crank Handle

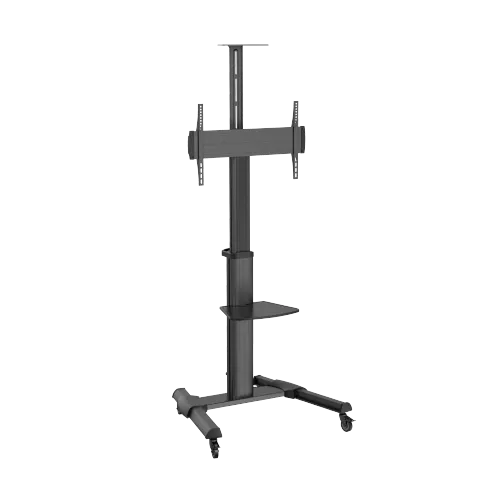

TTV04H-46TW Height Adjustable Aluminum TV Cart with Crank Handle

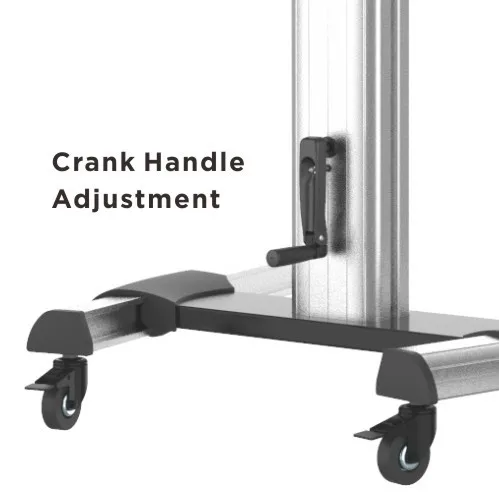

This single display TV cart with stylish, technical and functional design to provide solid presentation solution for most 37”-70” LED, LCD flat panel TVs up to 50kg/110lbs. The crank handle allows effortless height adjustment of 400mm to match different viewing needs anytime. +5°~-12° freely tilting allows easy angle adjustment and reduces glare from lights or windows to obtain the optimal viewing comfort. Solid base provides additional security by removing the possibility of tripped over and ensures reliable performance for years of use. Ideal for conferencing, public displays or other professional presentation.

Product Category: Crank Adjustable TV Cart
Rank: Premium
Material: Aluminum,Steel,Plastic
Metal Sheet Thickness: Bracket Arm THK=2mm cold-rolled sheet (Bracket Arm THK=0.079″ cold-rolled sheet)
Surface Finish: Powder Coating,Sand-blasted Aluminum Anodic Oxidation
Color: Black (Sandblasted Oxidation) & Matte Black,Sliver (Sandblasted Oxidation) & Matte Black
Color (Accessory): Matte Black,Fine Texture Grey

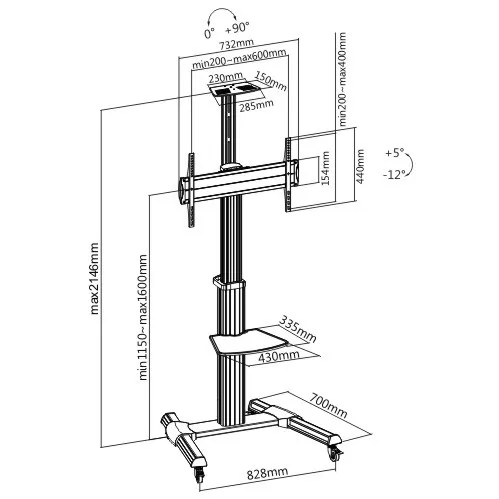

Dimensions: 828x700x1696~2146mm (32.6″x27.6″x66.8″~84.5″)
Column Size(Main Column/Extension Column): 140x95x1.8x850mm,110x61x1.8x785mm (5.5″x3.7″x0.071″x33.5″,4.3″x2.4″x0.071″x30.9″)
Fit Screen Size: 37″-70″
VESA Compatible: 200×200,400×200,300×300,400×400,600×400
TV Weight Capacity: 50kg (110lbs)
Strength Tested: 4 times approved
Screen Quantity: 1

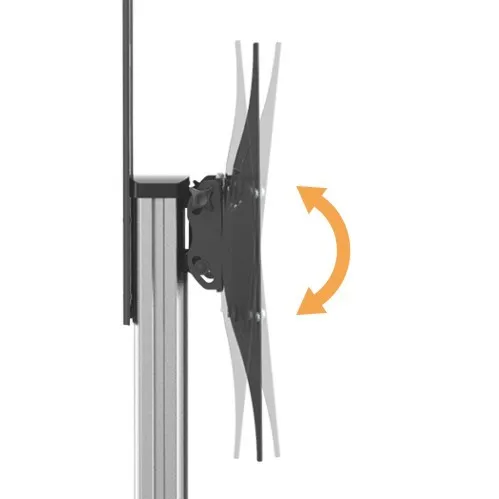

Tilt Range: +5°~-12°
Screen Rotation: 0°~+90°
TV Height Adjustable: Yes
Height Range: 1150~1600mm (45.3″~63″)
Shelf Weight Capacity: 5kg (11lbs)
Shelf Height Adjustable: Yes
Camera Rack Weight Capacity: 5kg (11lbs)
Camera Rack Height Adjustable: 1666~2146mm
Cable Management: No
Base Type: Caster
10 Degree Slope Testing: Yes
Accessory Kit Package: Compartment Polybag
Direction Indicator: Yes
