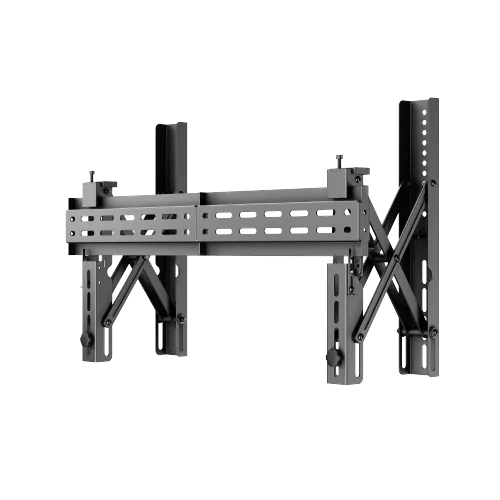

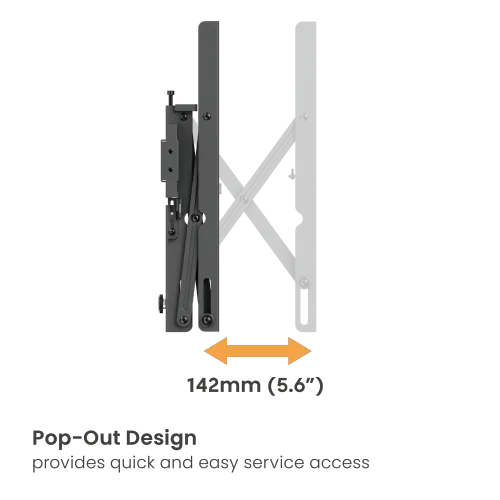

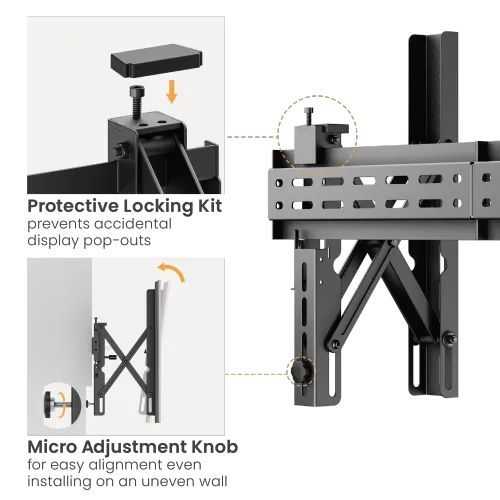

With a gentle press to release, LVW02E-46T Video Wall Mount is easy to configure, quick to install, and convenient to maintain. Integrated protective locking kits prevent any accidental display pop-outs. Precise display alignment is achieved by screen leveling, height adjustment, and lateral adjustment for a seamless video wall. What’s more, the anti-theft design provides safety for public use.
| Product Category: |
Video Wall Mount |
| Rank: |
Standard |
| Material: |
Steel |
| Metal Sheet Thickness: |
Wall Plate THK=2mm cold-rolled sheet,Bracket Arm THK=2mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet |
| Surface Finish: |
Powder Coating |
| Color: |
Fine Texture Black |

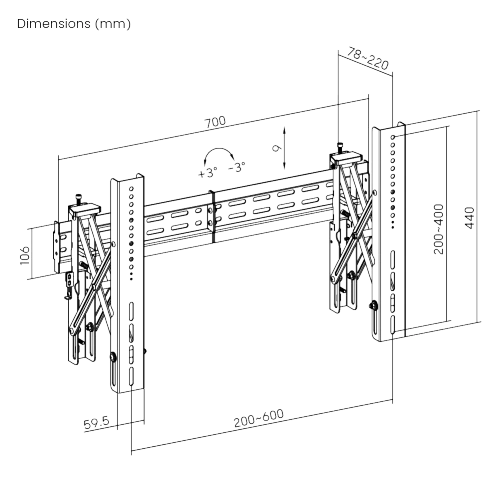

| Dimensions: |
700x440x220mm (27.6″x17.3″x8.7″) |
| Fit Screen Size: |
37″-70″ |
| VESA Compatible: |
200×200,300×200,400×200,300×300,400×300,400×400,600×400 |
| Max. Mounting Hole: |
600×400 |
| Weight Capacity(Per Screen): |
70kg (154lbs) |
| Screen Qty: |
1 |
| Strength Tested: |
4 Times Approved |
| Profile: |
78~220mm (3.1″~8.7″) |
| Fine Adjustment(Depth/Height): |
0/9mm (0″/0.35″) |
| Screen Level: |
+3°~-3° |
| Installation: |
Solid Wall |
| Cable Management: |
No |

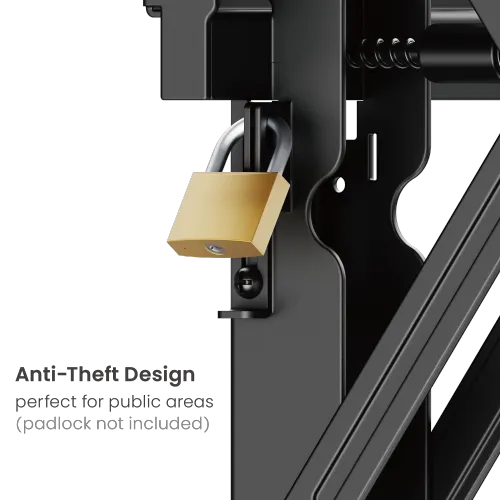

| Anti-theft: |
Yes |
| Accessory Kit Package: |
Normal/Ziplock Polybag,Compartment Polybag |
